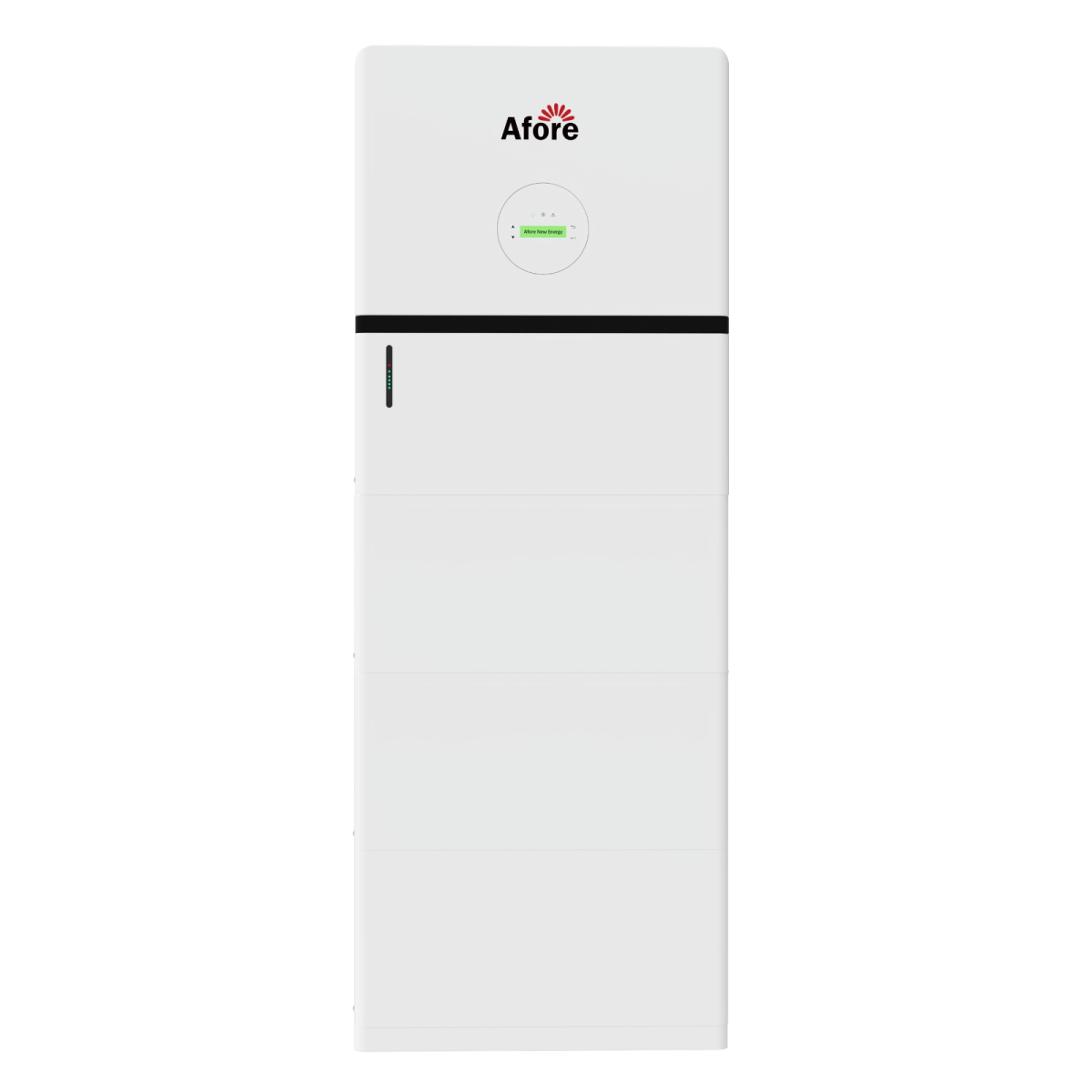

Es bietet eine elegante, robuste und zeitsparende Lösung für Heim-Energieverwaltung.

PV Eingang (DC)

• Max. Input Power: 15 kW
• Max. PV Voltage: 1000 V
• Rated Input Voltage: 620 V
• DC Input Voltage Range: 100 – 1000 V
• MPPT Range: 500 – 850 V
• Full MPPT Range: 500 – 850 V
• Startup Voltage: 160 V
• Max. Input Current: 20 A × 2
• Max. Short Current: 30 A × 2
• MPPT Tracker / Strings: 2 / 2

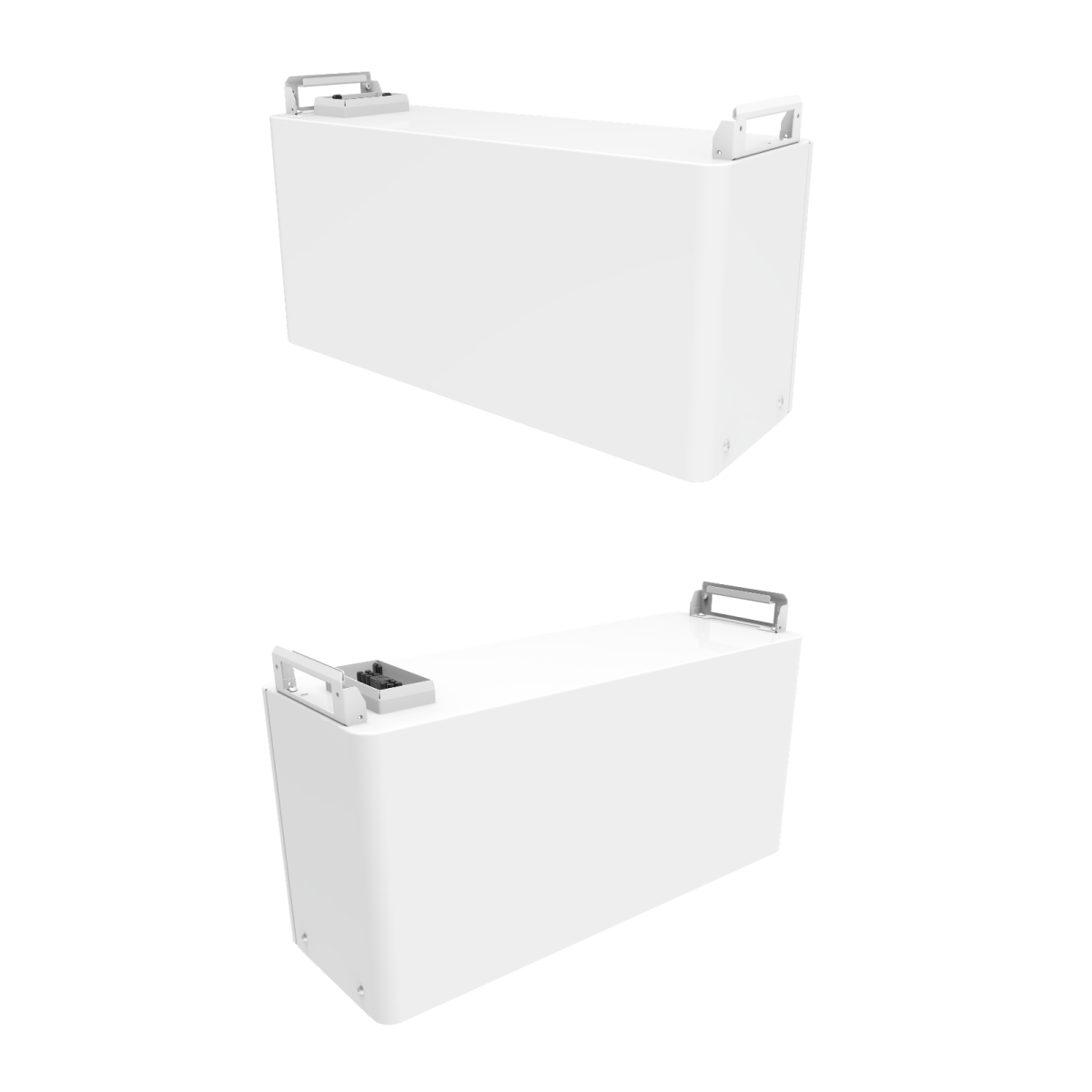

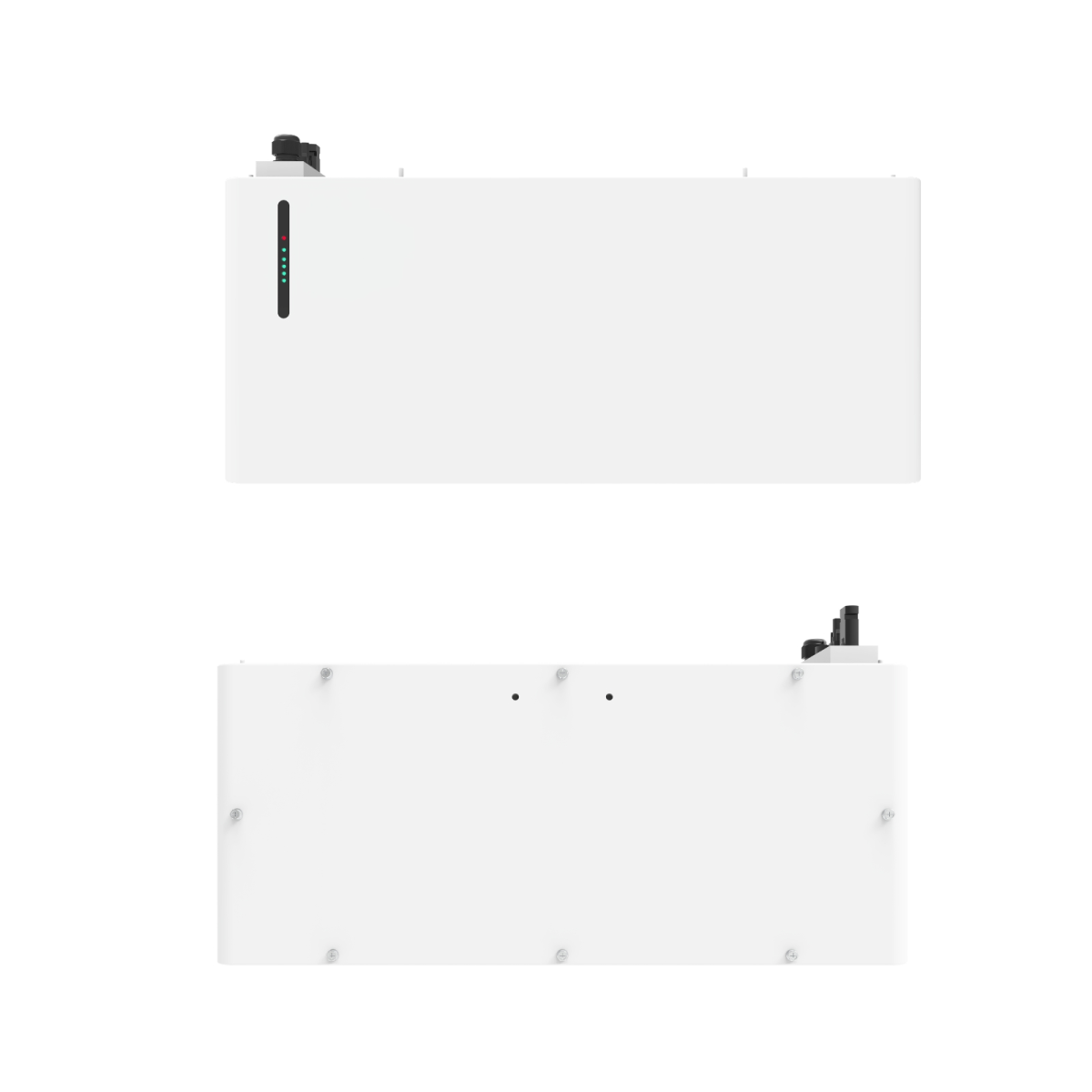

Batterie

• Total Energy: 13.82 kWh
• Usable Energy: 13.13 kWh
• Battery Voltage Range: 168 – 216 Vdc
• Nominal Voltage: 192 Vdc
• Charging Voltage Declared by Manufacturer: 216 Vdc
• Nominal Charging Current: 30 A
• Nominal Discharge Current: 30 A
• Battery Communication: CAN / RS485
• Depth of Discharge (DOD): 95 %

Netzanschluss (AC Grid)

• Max Continuous Current: 17 A
• Max Continuous Power: 10 kVA
• Nominal Grid Voltage: 230 V
• Nominal Frequency: 50 / 60 Hz
• Power Factor: 1 (0.8 – 0.8 einstellbar)
• Current THD: < 3 %

Backup Ausgang (AC Load Output)

• Nominal Output Power: 10000 W
• Nominal AC Voltage: 230 / 400 V
• Nominal Frequency: 50 / 60 Hz
• Nominal Output Current: 14.5 A
• Peak Output Power: 11000 VA (60 s)
• Switching Time: < 10 ms

Wirkungsgrad

• EU Efficiency: 97.50 %
• Max Efficiency: 98.00 %
• Battery Charge / Discharge Efficiency: 98.0 %

Schutzfunktionen

• PV Reverse Polarity Protection
• Over Current / Voltage Protection
• Anti-Islanding Protection
• AC Short Circuit Protection
• Residual Current Detection
• Ground Fault Monitoring
• Insulation Resistance Detection
• PV Arc Detection
• Surge Protection Type II

Allgemeine Daten

• Abmessungen Wechselrichter: 600 × 432 × 210 mm
• Gewicht Wechselrichter: 25 kg
• Topologie: Transformerless
• Kühlung: Natural Convection / Intelligent Fan
• Schutzklasse: IP66
• Betriebstemperatur: -25 °C bis +60 °C
• Betriebshöhe: < 4000 m
• Standby Verbrauch: < 5 W

Kommunikation & Schnittstellen

• Display: LCD + LED
• Kommunikation:
  • RS485
  • CAN
  • WiFi
  • GPRS
  • 4G

Zertifizierungen

• VDE-AR-N4105
• VDE0126
• EN50549-1
• G98 / G99
• C10 / C11
• AS4777.2
• IEC62109-1
• IEC62109-2
• EN61000-6-2 / EN61000-6-3
